Heating and Hot Water: Guide to Using Your Truma iNet X Boiler

Your Easy-to-Follow Guide to Staying Warm and Comfortable on the Go.

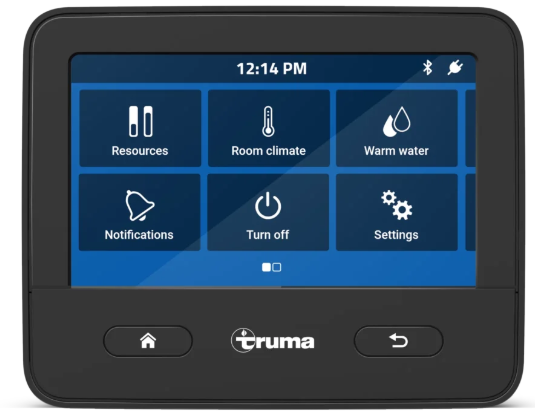

If your heating & hot water controls look like the image below, these instructions are for you!

Room Climate: Heating/Ventilation

  1. Preparation:

    • Ensure your gas bottle has a sufficient supply, and the valve is open (turned fully anticlockwise). Alternatively, hook up your van to a 240V electric source at the campsite.

  2. Access Room Climate:

    • On the home screen, press Room Climate.

    • Select Heating from the options.

  3. Check Energy Setting:

    • Look at the bottom-right of the screen to verify the current power source.

    • If you need to adjust the energy source:

      • Tap the energy source window.

      • For campsites with mains electricity: Choose Electric (900W for European sites or 1800W for UK sites) and ensure GAS OFF is selected. Avoid having both gas and electric active simultaneously, then press Back.

      • For locations without mains electricity: Choose GAS ON and ensure Electric OFF is selected. Then press Back.

  4. Heating Activation:

    • Return to the Heating page. Watch as the rings around the temperature indicator flash, signifying the van is warming up. Adjust the desired temperature using the + or – buttons.

  5. Select Fan Speed:

    • Choose your fan speed—either Comfort or Fast.

  6. Turn Off Heating:

    • When no longer needed, press the power symbol in the top-right corner.

    • Always power off heating via the control panel before closing the gas valve or disconnecting the electric hook-up.

 Hot Water

  1. Preparation:

    • Confirm there’s enough gas supply, with the valve open (turned fully anticlockwise), or ensure your van is connected to a 240V electric source at the campsite.

  2. Access Hot Water:

    • Press Hot Water on the home screen. Select Turn On.

  3. Check Energy Setting:

    • Verify the power source in the bottom-right corner of the screen.

    • To adjust:

      • Tap the energy source window.

      • For campsite mains electricity: Select Electric (900W for European sites or 1800W for UK sites) and ensure GAS OFF is selected. Then press Back.

      • If using gas: Select GAS ON, ensure Electric OFF is chosen, and press Back.

  4. Hot Water Activation:

    • Go back to the Heating page. Watch as the rings around the temperature indicator flash, showing the water is heating.

    • Set your desired temperature using the + or – buttons. Options include 40°C, 60°C, or 70°C. A red ring will pulse as water heats, and “heating” will appear above the temperature.

  5. Turn Off Hot Water:

    • Press the power symbol in the top-right corner when hot water is no longer required.

    • Always power off hot water on the control panel before closing the gas valve or disconnecting electric hook-up.

 Important Notes

  • Gas heats hot water faster than electricity.

  • The boiler heats the van first, then switches to water once the desired temperature is reached. For prioritizing hot water, turn off the heating feature temporarily.

  • Ensure the water pump is on to use hot water.

  • If frost protection has activated, refill the freshwater tank and turn the water pump on for at least 3 minutes to refill the boiler before activating the hot water feature.

  • Heating water takes about 15–20 minutes and is not instantaneous.
