How to Convert the U-Shaped Lounge into a Bed

Step by step instructions to get a good nights sleep

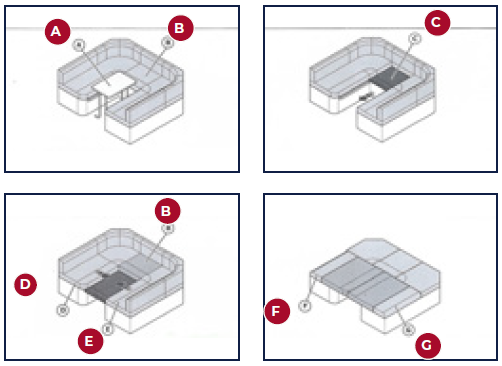

  1. Remove the Portable Table If you're using the portable table (A), remove it and store it back in the wardrobe.

  2. Extend the Wood Slats Locate the wood slats beneath the rear cushion (B) and carefully pull them out toward you. It’s important to pull the slats out evenly on both sides to prevent them from jamming or becoming difficult to extend (C).

  3. Arrange the Cushions Use the existing seat cushions to form the base of the bed (D, E). If you prefer, you can use the additional cushions instead to create the bed. Then, take the extra cushions from the under-seat compartments and place them to fill any remaining gaps (F, G).

  4. Store Excess Cushions Any unused or excess cushions can be stored neatly underneath the bed for convenience.

 Sleeping Orientation: For optimal comfort, you should sleep widthways in the motorhome.
