How to Use Your CBE PC110 Control Panel

A Simple Guide to Manage Your Campervan/Motorhome Systems Effectively

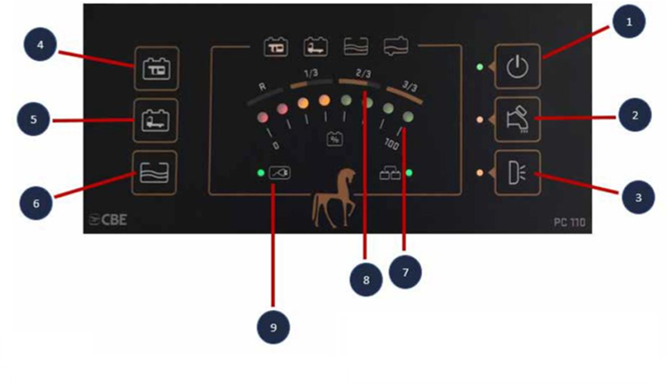

If your control panel looks like the image below, these instructions are for you!

Your control panel is your central hub for managing essential systems, such as lighting, water, and batteries. Follow this step-by-step guide to get the most out of your trip.

  1. Power On/Off
    • Press this button to turn the control panel and interior lights on or off.
    • Important: Always turn off the control panel when leaving the motorhome to prevent unnecessary battery drainage.
    • Note: If the leisure battery is running low, the on/off button will flash.
  2. Water Pump On/Off
    • Activate the water pump to use the shower, sinks, or toilet.
    • Reminder: Turn the pump off when it's not in use.
  3. Exterior Lights On/Off
    • If your motorhome has exterior lights, use this switch to turn them on/off.
    • Ensure these lights are off before leaving the vehicle.
  4. Starter Battery Voltage
    • Check the starter battery voltage using the voltage display. This helps you monitor the vehicle's main power source.
  5. Leisure Battery Voltage
    • View the leisure battery voltage on the display to ensure it's adequately charged for your motorhome's appliances.
  6. Water Tank Levels
    • Press once to check the fresh water tank level.
    • Press twice to view the grey water tank level (used water storage).
  7. Battery Voltage Display
    • The LED lights on the display show the voltage of both the starter and leisure batteries.
  8. Water Tank Level Display
    • LED indicators light up to display the fill levels of the fresh and grey water tanks.
  9. Mains Connection Symbol
    • When your motorhome is connected to an external power source (such as an electrical hookup), the LED light next to the mains connection symbol will illuminate.

Exit Checklist:

Before leaving your motorhome, make sure you turn off the control panel to avoid:

  • Unnecessary leisure battery drainage.
  • Water draining from the fresh water tank if the frost protection valve activates while the water pump is left on.
