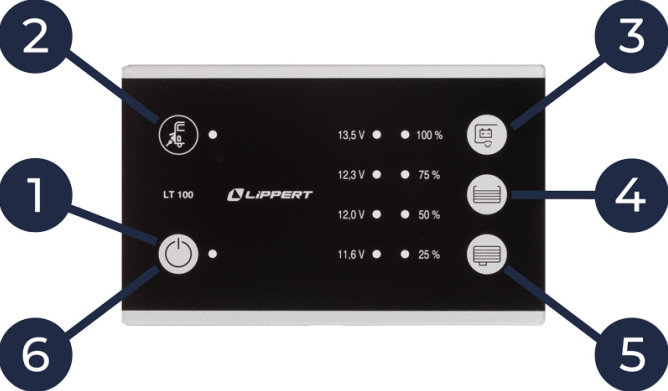

If your control panel looks like the image below, these instructions are for you!
Powering On
- Press the power button (1) to turn on the control panel. The green light will indicate that it is on.
- The display screen will illuminate, showing the current battery status and tank levels.
230V Mains Operation / Electric Hook-Up
- Plug the electric hook-up cable into both the motorhome and a mains power source (e.g., a campsite connection).
- The electric hook-up button (2) will light up when the motorhome is connected to mains power.
- When connected to 230V mains power, the leisure battery will automatically charge.
Checking Battery Levels
- Press the battery voltage display button (3) to view the current voltage of both the leisure battery and starter battery.
- Avoid fully draining the battery, as this can cause damage. A healthy voltage range is 12.3V – 13.5V.
Checking Water Tank Levels
- Fresh Water Tank: Press the fresh water tank level button (4) to check the current water levels.
- Waste Water Tank: Press the waste water tank level button (5) to view the waste water levels.
Powering Off
- Press the power button (6) again to turn off the control panel. The green light will switch off.
Troubleshooting
- If the battery voltage is low or water tank levels seem incorrect, please contact our team for assistance.
Important Note
If your vehicle is equipped with a Lippert LT100 control panel, the water pump is always on by default—no need to switch it on manually.
For further details, please refer to the user manual.
