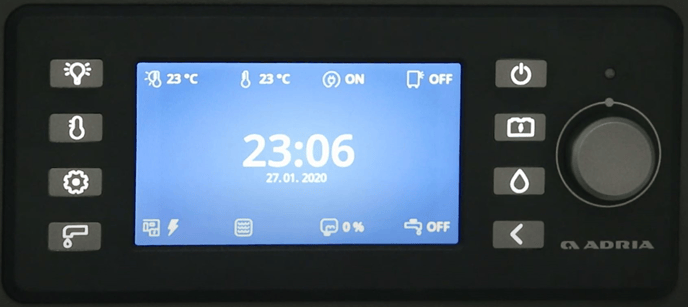

If your control panel looks like the image below, these instructions are for you!
Turning Things On and Off
- Power Button: Simply press and hold the button at the top right to turn the system on or off.
Keeping an Eye on Your Batteries
- Look for the battery symbol to check how much power you’ve got:
- Left symbol = Starter battery.
- Right symbol = Leisure battery.
- As you use the batteries, the circular line around the symbols will decrease
Checking Water Levels
- Water Droplet Symbol:
- Left symbol = How much water is left in your fresh water tank.
- Right symbol = How full your waste water tank is.
Lighting Made Simple
- Light Controls:
- Tap the light bulb symbol (top left) and turn the dial to adjust brightness:
- Left symbol = Interior lights.
- Right symbol = Exterior awning light.
- Press the dial to quickly turn the lights on or off.
- Tap the light bulb symbol (top left) and turn the dial to adjust brightness:
What’s the Temperature?
- Press the thermometer symbol to find out the temperature:
- Left side = Interior temperature.
- Right side = Exterior temperature.
Getting Water Flowing
- Tap the tap symbol to control your water pump:
- Once to turn it on.
- Tap again to turn it off.
Your One-Stop Overview
- Home Screen:
- This gives you a quick glance at everything.
- Plug Symbol (top): Confirms if you’re connected to mains power.
- Battery Charging Info (bottom left):
- Front vehicle symbol = Starter battery charging.
- Rear vehicle symbol = Leisure battery charging.
- The system automatically charges whichever battery has the least power first.
What if Something’s Not Working?
If the control panel doesn’t light up but everything else in the motorhome is working fine, double check the fuse.
Looking for more assistance?
Our dedicated On the Road Support (ORS) team is ready to help! Just click the link and choose the 'I require Technical Support' option. Fill out the form with as much detail as possible, and a member of our team will reach out to you.
