How to use your NE266 Control Panel

Navigate your motorhome’s functionality with ease using the following guidelines.

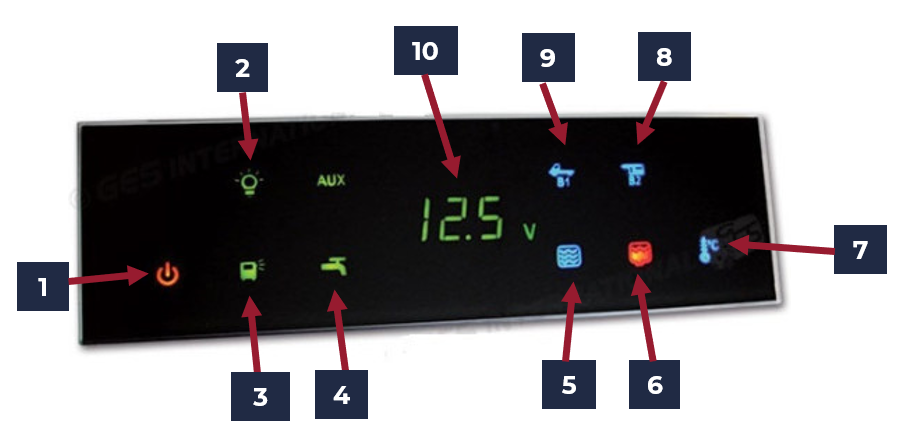

If your control panel looks like the image below, these instructions are for you!

  1. Power On/Off
    Hold the On/Off switch for 5 seconds to power the control panel on or off.

  2. Internal Lights
    Toggle your motorhome's internal lights on or off with a press of this button.
    Remember to switch them off before leaving the vehicle! A green light indicates the feature is active.

  3. External Lights
    Press to control the external lights. Like the internal lights, ensure they’re off when you leave. A green light means they’re on.

  4. Water Pump
    Use this button to activate or deactivate the water pump, essential for using the shower, sinks, and toilet flush. A green light confirms it’s on.

  5. Fresh Water Levels
    Check your fresh water tank level by pressing this button. The percentage will display (S1) and flash when the tank is empty.

  6. Waste Water Levels
    View your waste water tank level by pressing this button. The percentage will display (R1) and flash when the tank is full.

  7. Temperature

    • First press: Displays internal temperature (IN).
    • Second press: Shows external temperature (OUT).

  8. Leisure Battery Level

    • First press: Displays the battery voltage.
    • Second press: Shows the remaining battery percentage.

  9. Starter Battery Level

    • First press: Displays the starter battery voltage.
    • Second press: Shows the remaining battery percentage.

  10. Display Screen
    View all readings and symbols on this screen for a comprehensive overview.

Watch our video



Important Tips

  • Turn Off When Not in Use
    Always power down the control panel when you’re not in the motorhome to conserve battery life.

  • Mains Connection Symbol
    An LED plug symbol will appear on the display when the motorhome is hooked up to an external power source

What if Something’s Not Working?

If a triangle with an exclamation mark appears on the display, this signals an issue, accompanied by an error code:


    • E.1: Serial cable connection is wrong, check your mains hookup.
    • E.2: Water pump is short-circuited or overloaded.
    • E.6: External light output is short-circuited or overloaded.
    • E.7: Auxiliary or heating tank output is short-circuited or overloaded.

Looking for more assistance?

Our dedicated On the Road Support (ORS) team is ready to help! Just click the link and choose the 'I require Technical Support' option. Fill out the form with as much detail as possible, and a member of our team will reach out to you.
