How to use your Roller Team Control Panel

Simplified Steps for Seamless Operation

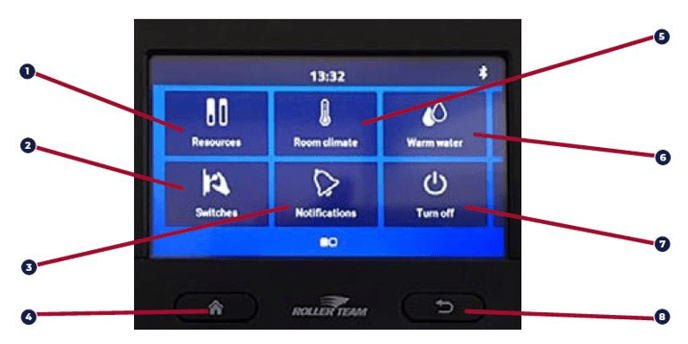

If your control panel looks like the image below, these instructions are for you!

1. Resources

  • Battery Levels: View your current battery levels. If the voltage drops below 12V, recharge by either plugging in at a campsite (ideally overnight) or driving for several hours.

  • Water Levels: Check fresh and grey water levels.

  • Refill: After topping up the freshwater tank, press the REFILL button to reset the indicator.

2. Switches

  • Lighting: Turn your motorhome’s lighting on or off.

  • Water Pump: Activate or deactivate the water pump as needed.

3. Notifications

  • Alerts: Displays any fault alerts to help you quickly address issues.

  • Heating Faults and Fuses: Provides fault descriptions to guide you in resolving the issue.

4. Home Button

  • Activation: Press the Home button to power on the control panel. After a few seconds, six control icons will appear.

5. Room Climate

  • Heating System: Manage and adjust your motorhome’s heating settings.

6. Warm Water

  • Hot Water System: Set and control the hot water system for your motorhome.

7. Turn Off

  • Choose between:

    • Standby: Puts the control panel into energy-saving mode.

    • Turn Off: Powers down all connected devices.

8. Back Button

  • Navigation: Use the Back button to return to the previous menu with ease.



Important Notes:

  • Gas Bottle and 240V Hook-Up: Ensure your gas bottle is turned on or your 240V hook-up is connected before starting the heating or hot water system. This prevents the system from entering fault mode.

  • Fault Mode: If a setting enters fault mode, a red bar will appear at the top of the icon. Check the Notification icon for the fault code and details about the issue.

  • In Use Indicators: When a setting is active (e.g., hot water), a green bar will appear at the top of the corresponding icon.
